About Us

Pneumercator was established in 1914 and began manufacturing column type mercury gauges for marine and industrial use. With over 100 years of experience, we are the industry-preferred automatic tank gauge for industrial, commercial, and mission critical applications. Customer statements reflect our dedication to quality and customer service when they say we are reliable, flexible and provide a high quality product at an affordable price.

Our Name

Pneumercator is derived from PNEUmatic MERcury indiCATOR. Our name has been on liquid level gauges from the Panama Canal to tanks that fuel Air Force One.

Our Mission

Manufacture high quality, affordable products that allow our customers to comply with environmental regulations

Why Pneumercator

#1

Industry Knowledge

Pneumercator has an in-depth understanding of industry regulations. Our engineering, technical support, manufacturing and sales teams have over 200 years of combined industry experience.

#2

Leading-edge Solutions

Whether it's NEMA 4X and 7 enclosures for tank monitor systems or tamper-proof leak sensors, Pneumercator leads the way in providing innovative solutions.

#3

Cost Effective Solutions

Pneumercator provides engineered, cost-effective solutions for your site including free phone support for the life of the product. Don't have a tech number? Don't worry we have you covered.

Products

Automatic Tank Gauges

Hardwired Console Image
[click image for details]
TMS4000 Hardwired Console TMS4000M Hardwired Console TMS3000E Hardwired Console TMS3000 Hardwired Console TMS2000 Hardwired Console TMS1000 Hardwired Console
Hardwired Console P/N TMS4000 TMS4000M TMS3000E TMS3000 TMS2000 TMS1000
Interface 10.4" Touch Screen 7" Touch Screen Super-Bright LED Display Push-button or TMSComm programming Super-Bright LED Display Push-button or TMSComm programming Super-Bright LED Display Push-button or TMSComm programming Super-Bright LED Display Push-button or TMSComm programming
Probe/Sensor Inputs
Standard Probe Inputs 4 4 4 4 2 1
Maximum # of Probes 48 4 12 12 2 1
Standard Sensor Inputs 8 8 8 8 8 2
Maximum # of Sensors 48 8 48 40 8 2
Probe/Sensor Card Expansion 3 Slots N/A 3 Slots 3 Slots N/A N/A
Enclosure Options
NEMA 12 Indoor Standard Standard Standard Standard Standard N/A
NEMA 4 Outdoor N/A N/A Optional Optional Optional N/A
NEMA 4X Corrosion-Protection Optional Optional Optional Optional Optional Standard
NEMA 7 Explosion-Proof N/A N/A Optional Optional Optional N/A
Communications
RS-232 Ports Standard 2 2 2 2* 1 1
RS-232 Ports Optional 2 N/A 2 2 2 2
RS-485 Ports Standard 1 1 1 1 1 0
RS-485 Optional 2 N/A 2 2 2 2
Ethernet Port 1 1 1 Optional Optional Optional
Communications Expansion 1 2 1 1 1 1
USB Port 1 Internal Standard
1 External Optional
1 Internal Standard
1 External Optional
1 Internal Standard
1 External Optional
N/A N/A N/A
ModBus RTU Optional (1-4 Ch.) Optional (1-3 Ch.) Optional (1-4 Ch.) Optional (1-4 Ch.) Optional (1-2 Ch.) Optional (1-2 Ch.)
Cellular Modem Optional Optional Optional N/A N/A N/A
PCO Cloudview Support Standard Standard Standard N/A N/A N/A
I/O
I/O Expansion Two I/O Slots One I/O Slot Two I/O Slots Two I/O Slots One I/O Slot N/A
Relay Outputs Standard 0 2 0 0 2 4
Relay Outputs Optional


Inputs x Outputs
4 x 4
8 x 8
0 x 16
0 x 32
0 x 4 4 x 4
8 x 8
0 x 16
0 x 32
4 x 4
8 x 8
0 x 16
4 x 4
8 x 8
0 x 16
N/A
Contact Closure Inputs Standard 0 2 0 0 2 4
Contact Closure Inputs Optional

Inputs x Outputs
4 x 4
8 x 8
N/A 4 x 4
8 x 8
4 x 4
8 x 8
4 x 4
8 x 8
N/A
Analog Optional 6
12
Bottom Slot Only
4 6
12
Bottom Slot Only
6
12
Bottom Slot Only
6
12
N/A

* 2 RS-232 Ports when configured without printer or modem

Automatic Tank Gauges

Wireless Console Image
[click image for details]
TMS2000W Wireless Console TMS4000W Wireless Console
Wireless Console P/N TMS2000W TMS4000W
Interface Super-Bright LED Display Push-button or TMSComm programming 10.4" Touch Screen
Probe/Sensor Inputs
Maximum # of Probes 32
*One probe per WiDAM
96
*One probe per WiDAM
Maximum # of Sensors 128
*Four sensors per WiDAM
384
*Four sensors per WiDAM
Enclosure Options
NEMA 12 Indoor Standard Standard
NEMA 4 Outdoor Optional N/A
NEMA 4X Corrosion-Protection Optional Optional
NEMA 7 Explosion-Proof Optional N/A
Communications
RS-232 Ports Standard 2 2
RS-232 Ports Optional 2 2
RS-485 Ports Standard 1 1
RS-485 Optional 2 2
Ethernet Port Optional 1
USB Port N/A 1 Internal Standard
1 External Optional
ModBus Optional (1-2 Ch.) Optional (1-4 Ch.)
Internal Cellular Modem N/A Optional
PCO Cloudview Support N/A Standard
I/O
I/O Expansion One I/O Slot Two I/O Slots
Relay Outputs Standard 2 0
Relay Outputs Optional

Inputs x Outputs
4 x 4
8 x 8
0 x 16
4 x 4
4 x 8
0 x 16
0 x 32
Contact Closure Inputs Standard 2 0
Contact Closure Inputs Optional

Inputs x Outputs
4 x 4
8 x 8
4 x 4
8 x 8
Analog Optional 6
12
6
12
Bottom Slot Only

WiDAM

Wireless Data Acquisition Module with 76AH battery pack & NEMA 4X enclosure; Each WiDAM supports 1 probe & up to 4 sensors.
Use with TMS2000W & TMS4000W

MPX200

900 MHz Wireless RS-485 communications for use with ETD1000W/RA400W, NEMA 4X Enclosure, AC Powered

WRP200

900 MHz Wireless Repeater to extend WiDAM or ETD1000W/RA400W Communications Range, NEMA 4X Enclosure, AC Powered

Mag Probes

Probe Image
[click image for details]
MP450S Magnetostrictive Probe MP461SC Magnetostrictive Probe MP461S Magnetostrictive Probe
Hardwired Consoles
Probe Base P/N
*MP450S MP451S MP452S MP461SC MP461SA MP462SA MP463SA MP464SA
Wireless/TMS1000 Consoles
Probe Base P/N
MP550S MP551S MP552S MP561SC MP561SA MP562SA MP563SA MP564SA
Mag Probe Specs
Probe Material 316SS 316SS 316SS PVDF PVDF PVDF PVDF PVDF
Probe Type Rigid Rigid Rigid Flexible Flexible Flexible Flexible Flexible
Probe Length 10" to 18'
10" to 216"
18' to 24'
217" to 288"
4' to 8'
48" to 96"
1' to 12'
12" to 144"
13' to 18'
156" to 216"
18' to 24'
217" to 288"
24' to 50'
289" to 600"
50' to 70'
601" to 840"
*Riser Mounted MP450S-xxx-25 with 4" Buna-N floats is required for In-Tank Leak Testing
Liquids
Automotive & Aviation Gasolines X X O/W Separators X X X X X
Diesel, Kerosenes, Bio-Fuels X X X X X X X
DEF X X X X X X X
Water X X X X X X X
Chemicals and Solvents Consult Factory N/A Consult Factory

Leak Sensors

Sensor Image
[click image for details]
ES825-100 Secondary Containment Leak Sensor ES825-200 Secondary Containment Leak Sensor LS600LD Secondary Containment Leak Sensor LS600LDBN Secondary Containment Leak Sensor LS610 Secondary Containment Leak Sensor RSU800-2 Secondary Containment Leak Sensor HS100ND Secondary Containment Leak Sensor HS100D2 Secondary Containment Leak Sensor
Hardwired Console P/N ES825-100F ES825-200F LS600LD LS600LDBN-2 LS610 RSU800-2 HS100ND HS100D2
Wireless Console P/N ES825-300FL ES825-400FL LS600LD LS600LDBN-2 LS610 RSU800-2 HS100NDL
Detection Method Electro-Optic Electro-Optic Conductive Float Float Float Float Polymer Polymer/Float
Discriminating X High/Low X Wet/Dry
Non-Discriminating X X X X X
Fault-Detect X X Optional Optional
Tamper-Resistant Optional
Applications
Containment Sump X X X X
Manway X X X X
Piping Sump X X X X
Dispenser Sump X X X X
Turbine Sump X X X X
Tank Interstitial - Dry X X X X X
Tank Interstitial - Wet X
Containment/Dike X
Wet Well Monitoring X

LLP203-1

Line Leak Sensor with 316 Stainless Steel sensing element and aluminum external housing

LLP203-2

Line Leak Sensor with all 316 Stainless Steel wetted components

LLP203-3

Line Leak Sensor with all Hastelloy wetted components for chemical applications

ETD1000T

Touchscreen Remote Electronic Tank Display, NEMA 4X Enclosure

ETD1000

Remote Electronic Tank Display, NEMA 4X Enclosure

RA400

Remote Audible & Visual Alarm with Test & Reset in NEMA 4X Enclosure

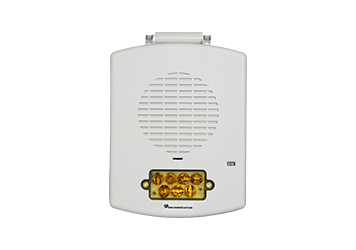

RA200

Remote Audible & Visual Alarm in NEMA 4X Enclosure

RA100

Remote Audible & Visual Alarm in NEMA 4X Enclosure

LC1000-A

1, 2, 3 or 4-Input Secondary Containment Leak/Point-Level Audible/Visual Alarm Console

LC1000-A NEMA 7 Enclosure

1, 2, 3 or 4-Input Secondary Containment Leak/Point-Level Audible/Visual Alarm Console with Explosion-Proof Enclosure

LC2000

4, 8, 12 or 16-Input Discriminating/Non-Discriminating Secondary Containment Leak/Point Level Alarm Console with Printer Option

PC1002-A

Automatic Pump Controller with Manual Override, Emergency Stop & Two Pump control inputs
Use with LS600-2

PC1003L-A

Automatic Pump Controller with Manual Override, Emergency Stop, Two Pump control inputs & One Critical Low Input
Use with LS600-3

PC1003H-A

Automatic Pump Controller with Manual Override, Emergency Stop, Two Pump control inputs & One Critical High Input
Use with LS600-3

PC1004-A

Automatic Pump Controller with Manual Override, Emergency Stop, Two Pump control inputs & Two Critical Inputs
Use with LS600-4

LS600

Point Level Sensor to provide overfill protection, high/low alarms, or start/stop for select pump/valve control applications

LS600F4

Point Level Sensor with 4" floats to accommodate more viscous fluids or higher turbulence environments. Stem lengths over 14’ [4.27M] support applications requiring lower activation points.

LS600M

Point Level Sensor for use with sub-base generator tanks and other shallow tank and small opening applications; Supports tanks with openings less than 1.5” NPT.

LS600W

Point Level Sensor for Oil Water Separator applications; One or more floats are weighted to sink through petroleum but float on water allowing the monitoring of the Oil/Water Interface.

LS600X

Point Level Sensor to provide a water tight cable exit to support sensor installation locations, typically a sump or manway, where water ingress is problematic or unavoidable.

P-5

Hydrostatic Tank Gauge for Single Tank up to 3000 gallons with 5" Scale Dial Face, Built-in Hand Pump and Indoor or Outdoor Rated Enclosure. Hand Pump Gauges Can Operate up to 150' from tank.

P-14

Hydrostatic Tank Gauge for Single Tank 3000 gallons and higher with 14" Scale Dial Face, Built-in Hand Pump and Indoor or Outdoor Rated Enclosure. Hand Pump Gauges Can Operate up to 150' from tank.

P-5A

Hydrostatic Tank Gauge for Single Tank up to 3000 gallons with 5" Scale Dial Face, and Indoor or Outdoor Rated Enclosure. Requires Constant Air Input and Gauges Can Operate up to 1000' from tank.

P-14A

Hydrostatic Tank Gauge for Single Tank 3000 gallons and higher with 14" Scale Dial Face, and Indoor or Outdoor Rated Enclosure. Requires Constant Air Input and Gauges Can Operate up to 1000' from tank.

Single-tank, non-powered, pivot-arm mechanical 8" dial indicator with 20" scale for precision tank level, volume or percent volume.
Maximum vertical tank dimension 12'.

DR-1-00

Viton Seal, Requires 2" NPT Tank Opening

DR-1-10

SS Wetted Components, Requires 4" NPT Tank Opening

The PD Series offers additional protection to intrinsically safe circuits from damage due to power surge and lightning activity. The unit requires no external power.

PD1230

Probe/Sensor 36-Wire Protection, 12 Cartridge Capacity + Test, NEMA 4X Enclosure

PD230

Probe/Sensor 6-Wire Protection, 2 Cartridge Capacity, NEMA 4X Enclosure

PM324-3

24VDC Protection Cartridge 3-Pack, 3 Wires/Cartridge - Use w/TMS and LC2000

Applications

Technical Support

Pneumercator offers free phone support for the life of your product. This includes installation, programming, and troubleshooting. For assistance or technical training dates, call us at (631) 293-8450 or email support@pneumercator.com
