Features

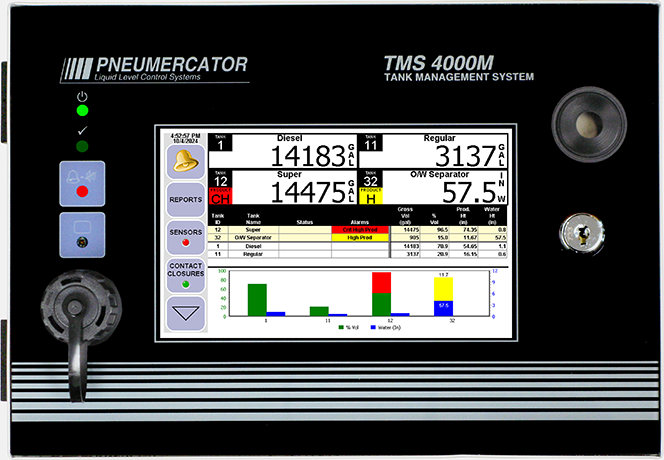

The TMS4000M Tank Management System is the latest generation of the TMS family, and the first touchscreen-based system in the industry available for both indoor and outdoor use without requiring a secondary enclosure, supplemental heating or cooling.

7" Color SVGA Display provides easy-to-use graphical interface

Customizable home page with easy-to-read meters, detailed spreadsheet and quick-view bar graphs

Displays Gross Volume, Net Volume, Ullage, Product Height, Percent Volume, Water Height and Temperature for each tank

One touch to leak sensor status and alarm acknowledgment

Theft Detect feature detects loss of product and is enabled individually per tank

Supports up to 8 Electronic Line Leak Sensors providing 3GPH catastrophic line leak detection - No Additional Software or Hardware Required

Field selectable language (English/Spanish/French) and units of measure (US/Metric) to meet localized settings

Auto-switching universal power supply operates with any line voltage betweeen 95-250 VAC, 50/60Hz

Designed to work with all TMS2000/TMS3000 probes and sensors

Optional External Thermal Printer with landscape inventory reports

Factory Programming Available

PCO Cloudview software standard via included Ethernet port or optional cellular


All models include support for 4 Probes and 8 Leak/Point Level Sensor Inputs, Internal USB, Ethernet, RS-485 & (2) RS-232 Serial Ports.



The TMS4000M is UL/cUL approved, Third-party approved, NWGLDE-listed. Pneumercator has Florida EQ numbers and California Water Board approvals.

Dimensions (W x H x D): 10.9” x 9.1” x 4.7” (277 mm x 230 mm x 118 mm)

Weight: 12 lb (5.5 kg)

Operating Temperature: -22°F to 160°F (-30°C to 70°C); Consult Factory for applications below -22°F

Humidity: 95% Non-Condensing

Enclosure Rating: Locking NEMA 12 (IP52) or NEMA 4X (IP56) (304 SS)

Enclosure Mount Options: Wall-Mount (Standard) or Panel-Mount (Optional)

Power Requirements: 115/230 VAC +/-15% Autoswitching, 50-60 Hz, 30 W Max. 10-50 VDC Optional

Memory: Configuration/Setup Data - SD Card, 50 year data retention, no batteries
Log Reports - Removable SD Card, 50 year data retention, no batteries
Real-Time Clock - Lithium Battery-Backed

Audible Alarm: 85 db

Display: 7" (178 mm) Diagonal SVGA LCD with Integral 7H Hardness Touch Panel. Glove Touchable

Display: Dedicated High Brightness Power, Normal, Alarm LEDs visible from 75'

Communication: (2) RS-232, (1) RS-485 for Pneumercator Peripherals,
(1) Ethernet TCP/IP port, (1) USB Host/Client

Optional Communication: Internal, Secured Modem, Cellular Modem, Single/Dual-Channel ModBus

Probe/Sensor Capacities: 4 Magnetostrictive Probes, 8 Leak or Point-Level Sensors

I/O, Non-Hazardous: 2 Relays, 1 Form C, Rated 10 A@120 VAC, 6 A@240 VAC, w/ 2 Opto-Isolated Inputs
Expansion Slot Options:
4 Relays, 1 Form A, Rated 5 A@120 VAC, 5 A@240 VAC, w/ 4 Opto-Isolated Inputs
8 Relays, 1 Form A, Rated 5 A@120 VAC, 5 A@240 VAC
4-Ch. Programmable Analog Outputs: 0-1 mA, 0-20 mA, 0-24 mA, 4-20 mA, 0-5 VDC, 1-5 VDC

Full spec sheet is included with TMS4000M Downloads.




PCO CloudView Web-based Application

Access Real Time Data

With any smart device, you can view alarms, log reports and system configurations, change system configurations, and get firmware updates for new features.

Access Any TMS4000

PCO Cloudview is a free web-based application supporting remote connectivity for any TMS4000/4000M/4000W through the included Ethernet port or optional internal cellular modem.

Log Reports

Inventory, sales, delivery, theft, alarm, events, water removal, tank leak and tank leak istory reports are available. Export and print functions are provided for all log reports

PCO Cloudview Access

Assign your own administrator who can admit any number of users with specific degrees of access to both sites and services.

Alarm Notifications

Alarm notifications are sent through text and/or email. Texts and emails are unlimited.

REST API

Available for customers using third-party access providers
