Features

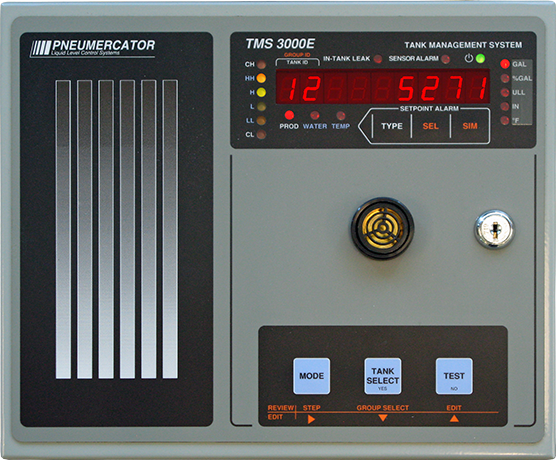

The TMS3000E Tank Management System is the enhanced version of the industry-proven TMS3000 series, with an extensive list of new features, including 6 programmable Product, Water and Temperature setpoints, Simulate mode, Ethernet TCP/IP (e-mail alerts included), USB host and client, RS232 (2 standard, expandable to 6) and RS485.
Super Bright LED Display, Readable From 25 Feet (6.3 m)
Displays Gross Volume, Net Volume, Ullage, Product Height, Percent Volume, Water Height and Temperature for each tank
Support for up to 12 magnetostrictive level probes
Support for up to 48 leak sensors
In-Tank Leak Testing: 0.1 GPH precision & 0.2 GPH monthly testing with as little as 20% tank capacity
Theft Detect feature detects loss of product and is enabled individually per tank
Supports up to 16 Electronic Line Leak Sensors providing 3GPH catastrophic line leak detection - No Additional Software Needed
Field Upgradeable Firmware supports either US or Metric Units of Measure
Optional Impact or Thermal Printer
Back-up generator and oil/water separator applications supported
All models include a minimum of 4 Probe and 8 Leak/Point Level Sensor Inputs, RS485 & RS232 Serial Ports.
The TMS3000E is UL/cUL approved, Third-party approved, NWGLDE-listed. Pneumercator has Florida EQ numbers and California Water Board approvals.
Dimensions (W x H x D): 14.3” x 11.8” x 7.9” (363 mm x 300 mm x 200 mm)
Weight: 21 lb (9.6 kg) (4-Tank w/ Printer), 23.5 lb (10.7 kg) (12-Tank w/ Printer)
Operating Temperature without Printer: -40°F to 160°F (-40°C to 70°C)
Operating Temperature with Printer:-5°F to 140°F (-20°C to670°C)
Humidity: 95% Non-Condensing
Enclosure Rating: Locking NEMA 12 (IP52), NEMA 4 (IP56) or NEMA 4X (IP66) (304 SS)
Enclosure Mount Options: Wall-Mount (Standard) or Panel-Mount (Optional)
Power Requirements: 95-250VAC Autoswitching, 50-60 Hz, 30 W Max.
10-60VDC Optional
Memory: Configuration/Setup Data – SD Card, 50 year data retention, no batteries
Log Reports – Removable SD Card, 50 year data retention, no batteries
Real-Time Clock – Super Cap-Backed, no battery required
Audible Alarm: 85 db
Display: 9-Character, Super-Bright Sunlight-Readable LED Data Display, Readable from 25'(7.6 m) Ultra-High Intensity Alarm LEDS, Visible from 75'(22.9 m)
Communication: Two (2) RS-232 Included Standard, RJ-13 Jack, Optional Expansion to six(6), four of which are field selectable for RS232 or RS485
Single RS485 Included Standard, RJ-13 Jack (For Pneumercator Peripherals)
Ethernet TCP/IP Port Included Standard
USB Host and Client Included Standard
Optional Communication: Internal, Secured Cellular or Landline Modem, Single/Dual/Quad-Channel ModBus
Probe/Sensor Capacities: (3) Probe/Sensor Card Slots Available;
All Sensor Inputs Supervised-Wiring-Ready
Probe/Sensor Card Options: 4 Probe/8 Sensor Card Standard; 16 Sensor Card Option
I/O, Non-Hazardous: (2) Expansion Slots Available
4 Relays,1 Form C, Rated 10A@120 VAC, 6A @ 240 VAC, w/4 Opto-Isolated Inputs
8 Relays,1 Form A, Rated 5A@120 VAC, 5A @ 240 VAC, w/8 Opto-Isolated Inputs
16 Relays,1 Form A, Rated 5A@120 VAC, 5A @ 240 VAC
32 Relays,1 Form A, Rated 1A@24 VDC
6 or 12 Channel Programmable Analog Outputs
Full spec sheet is included with TMS3000E Downloads.
For additional technical resources, please contact tech support at (631) 293-8450 or support@pneumercator.com.
PCO CloudView Web-based Application
Access Real Time Data
With any smart device, you can view alarms, log reports and system configurations, change system configurations, and get firmware updates for new features.
Access Any TMS3000E
PCO Cloudview is a free web-based application supporting remote connectivity through the included Ethernet port or optional internal cellular modem.
Log Reports
Inventory, sales, delivery, theft, alarm, events, water removal, tank leak and tank leak history reports are available. Export and print functions are provided for all log reports
PCO Cloudview Access
Assign your own administrator who can assign any number of users with specific degrees of access to both sites and services.
Alarm Notifications
Alarm notifications are sent through text and/or email. Texts and emails are unlimited.
REST API
Available for customers using third-party access providers
